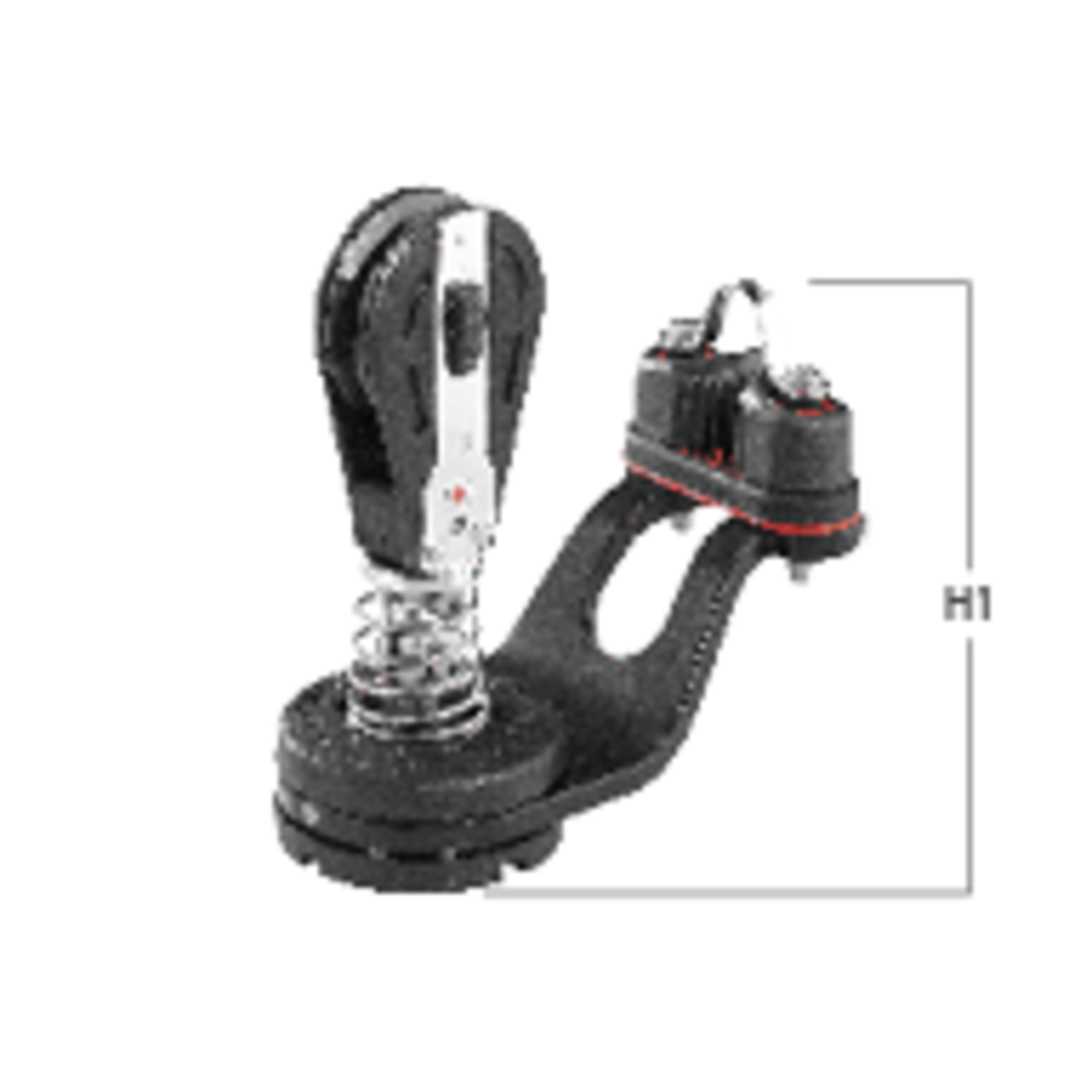

Ball bearing base 10 mm - ratchet block

Flexible ball bearing base with short extension arm and mounted ratchet block for maximum 10 mm rope, can be rotated 180°, 210°or 360°.
The ball bearing base can convince with various advantages:

the spring fixation prevents the spring from catching on to the block
integration of four water drains into the base plate
defined ratcheting with adjustable pressure point - the user determines whether the base is whirled freely or how strongly the brakes are applied
two rows of Delrin balls ensure easy rotation and free, unhindered running - even under load
the mounted Camlan® cam cleat is suitable for ropes with a diameter of 8-13 mm and can be mounted on or under the extension arm
the rope can run through the wide and deep cut-out directly into the Camlan® cam cleat without the need for pubic filaments
optimally angled extension arm, made of sturdy aluminum, anodised

Important notes on the extension arm limitation:
Two pre-assembled stainless steel screws prevent overtightening. Please make the desired limitation before mounting the base!

with two screws mounted outside: 180°limitation (delivery condition)
with one screw centrally mounted: 210°limit
without screws: free whirling, no limitation


Further advantages at a glance:

Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
constant quality checks - before, during and after production
excellent price/performance ratio
